ISR4221-AX/K9 Cisco ISR 4221 Router AX Bundle W/APP 2 WAN/LAN Ports 1 SFP Port Multi-Core CPU 2 NIM Security Bundle

Product Categories
LonRise Equipment Co. Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

ISR4221-AX/K9 Cisco ISR 4221 Router AX Bundle W/APP 2 WAN/LAN Ports 1 SFP Port Multi-Core CPU 2 NIM Security Bundle

Brand Name : Cisco

Model Number : ISR4221-AX/K9

Certification : CE

Place of Origin : USA

Model : ISR4221-AX/K9

Aggregate Throughput : 35 Mbps to 75 Mbps

WAN/LAN Ports : 2

SFP Port : 1

CPU : Multi-Core

Management port : 1 GE (Integated Out of Band)

Default/max memory : 4 GB

Default/max flash memory : 8G

Power supply type : External: AC Only

Condition : Brand New Sealed

Warranty : 1 year

Payment : T/T, Western Union, Paypal

Shipment : DHL, Fedex, UPS

Contact Now

ISR4221-AX/K9 Overview

Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 35Mbps thoughtput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 75Mbps by buying licenses. ISR4221-AX/K9 is the ISR4221 router with AX Bundle w/APP, and security license.

ISR4221-AX/K9 Cisco ISR 4221 Router AX Bundle W/APP 2 WAN/LAN Ports 1 SFP Port Multi-Core CPU 2 NIM Security BundleISR4221-AX/K9 Cisco ISR 4221 Router AX Bundle W/APP 2 WAN/LAN Ports 1 SFP Port Multi-Core CPU 2 NIM Security Bundle

The Modules, Cards and Accessories

Table 2 shows some recommended modules, cards, and cables.

tems Models Description
Console and Auxillary Cables CAB-CONSOLE-RJ45 Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
Network Interface Modules NIM-1MFT-T1/E1 Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
NIM-ES2-4 Cisco 4000 Series Integrated Services Router 4-Port Gigabit Ethernet Switch Module layer 2
NIM-ES2-8 Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM
SFPs for On-Board GE Ports GLC-LH-SMD Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-ZX-SMD Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM
GLC-SX-M MD Cisco GLC-SX-M MD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

Compare to Similar Items

Models ISR4221/K9 ISR4221-AX/K9
Description Cisco ISR 4221 (2GE,2NIM,4G FLASH,4G DRAM,IPB) Cisco ISR 4221 AX Bundle w/APP, SEC lic
Aggregate Throughput 35 Mbps to 75 Mbps 35 Mbps to 75 Mbps

Total onboard WAN or

LAN 10/100/1000 ports

 2 2
RJ-45-based ports 2 2
SFP-based ports 1 1
Enhanced service-module slots 0 0
NIM slots 2 2
Onboard ISC slot No No
Rack height 1 1

ISR4221-AX/K9 Specification

ISR4221-AX/K9 Specification
Description Cisco ISR 4221 AX Bundle w/APP, SEC lic
Aggregate Throughput 35 Mbps to 75 Mbps
Total onboard WAN or LAN 10/100/1000 ports 2
RJ-45-based ports 2
SFP-based ports 1
Enhanced service-module slots 0
Doublewide service-module slots 0
NIM slots 2
OIR (all I/O modules) No
Onboard ISC slot No

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

 4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) 4 GB
Default memory DDR3 ECC DRAM (data plane) NA
Maximum memory DDR3 ECC DRAM (data plane) NA
Default memory DDR3 ECC DRAM (control/services plane) NA
Maximum memory DDR3 ECC DRAM (control/services plane) NA
Default flash memory 8 GB
Maximum flash memory 8 GB
External USB 2.0 slots (type A) 1
USB console port -type B mini (up to 115.2 kbps) 0
Serial console port - RJ45 (up to 115.2 kbps) 1 (combo CON/AUX port)

Serial auxiliary port - RJ45

(up to 115.2 kbps)

 1 (combo CON/AUX port)
Power-supply options External: AC Only
Redundant power supply N/A
AC input voltage 100 to 240 VAC autoranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 1.5 to 0.6A
AC input surge current 90 A peak and less than 3 Arms per half cycle
Typical power (no modules) (watts) 24
Maximum power with AC power supply (watts) 90
Maximum power with PoE power supply (platform only) (watts) NA (no PoE support)
Maximum endpoint PoE power available from PoE power supply (watts) NA (no PoE support)

ISR4221-AX/K9 Cisco ISR 4221 Router AX Bundle W/APP 2 WAN/LAN Ports 1 SFP Port Multi-Core CPU 2 NIM Security Bundle


Product Tags:

Cisco ISR 4221 router AX Bundle



Cisco ISR4221-AX/K9



2 WAN/LAN ports ISR4221-AX/K9


Cheap ISR4221-AX/K9 Cisco ISR 4221 Router AX Bundle W/APP 2 WAN/LAN Ports 1 SFP Port Multi-Core CPU 2 NIM Security Bundle for sale

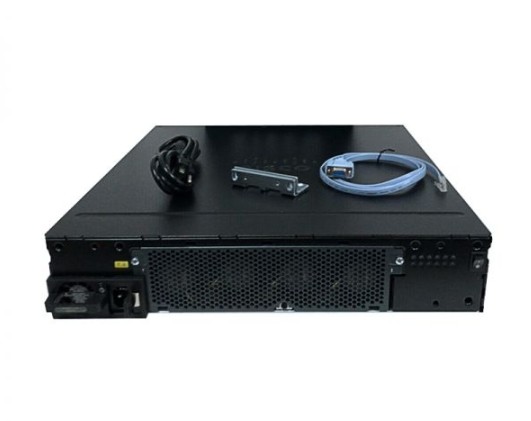

ISR4221-AX/K9 Cisco ISR 4221 Router AX Bundle W/APP 2 WAN/LAN Ports 1 SFP Port Multi-Core CPU 2 NIM Security Bundle Images
